Newbridge

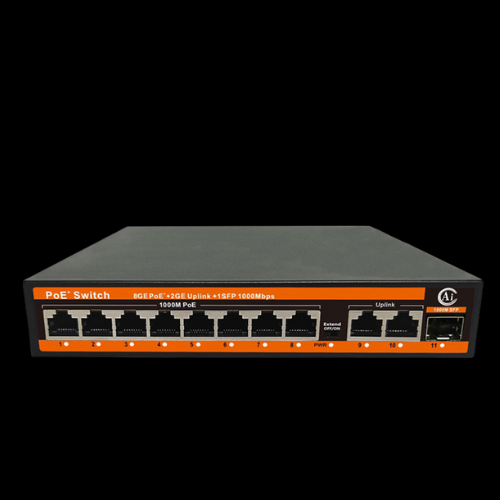

Model: ND-AHP0820
8 Port PoE+2 Gigabit Ethernet Port+1 Gigabit SFP Fiber
FEATURES:
Support Max Transmission distance up to 250m with PoE Power
Maximum power of single PoE port: 30 W
Maximum PoE power: 120W
8*10/100/1000Mbps PoE ports,
2*10/100/1000Mbps uplink port ，1*1000Mbps SFP Slot
Support IEEE802.3af/at
Support restrain network storm, VLAN function
Support A I self-healing mode（Watchdog function）
The toggle horse can be switched at will without power
All port supported by MDI/MDIX auto flip and self-negotiation
Built-in power supply
Adopts store-and-forward architecture
Fanless, natural cooling, small, compact and quiet design, suitable for desktop or wall
Support lightning protection 4kV
| Power | Power Adapter Voltage | AC 110V-240V | |
| Consumption | 120W/150W | ||
| Network Connector | Network Port | PoE Ethernet Port | 1～8 Port : 10/100Mbps |
| Ethernet port | Uplink Port : 10/100Mbps | ||
| Transmission Distance | 1～8 Port : 100Mbps:0~100m; 10Mbps: 0~250m; | ||
| Uplink Port : 0 ~ 100m | |||
| Transmission Medium | Cat5/5e/6 standard network cable | ||
| Network Switch | Network Standard | IEEE802.3/802.3u, IEEE802.3x,IEEE802.ab | |
| Switching Capacity | 2.0Gbps | ||
| Packet Buffer Memory | 1Mbits | ||
| Throughput | 1.488Mpps | ||
| MAC Table | 1K | ||
| Packet Forwarding rate | 10Mbps:14880pps/port 100Mbps: 148800pps/port | ||
| Power Over Ethernet | PoE Standard | IEEE 802.3af/at | |
| PoE Power Supply | 12 + ,36 - , 4 core power supply | ||
| PoE Power | af=15.4W,at=30W for each port | ||
| RJ45 port | Port Function | Power priority mechanism, fast and forward, MAC automatic learning and aging IEEE802.3X Full-duplex and mode and backpressure for Half-duplex mode | |
| LED Indicator | LED Indicator | LINK/ACT.100Mbps; PoE Status Indicator; Power indicator; Extender | |
| Environmental | Working temperature | 0℃~55℃ | |
| Relative Humidity | 20~95% | ||
| Storage temperature | -20℃~70℃ | ||
| Mechanical | Dimension (L×W×H) | 220mm*140mm*45mm | |
| Color | Black | ||
| Weight | 1.05kg | ||
Newbridge®The 8-port 10/100/1000Mbps AI PoE switch provides seamless data connectivity for 10/100/1000Mbps Ethernet and PoE power for powered devices such as network surveillance cameras and wireless (AP).
The switch has 8* 10/100/1000Mbps PoE+ ports + 2* 100/1000Mbps uplink ports+ 1 Gigabit SFP ports, where 1-8 1000 Mbps downlink power ports all support powering PoE network cameras via UTP Category 5 and above unshielded twisted pair cables. 8 10/100/1000 Mbps adaptive RJ45 downlink ports all support 802.3af/at standard PoE power supply. Support priority mechanism, when the remaining power is insufficient, the power supply of the high priority port is guaranteed first to avoid overloading the equipment. The maximum PoE output power of the whole machine is 120W, and the maximum power supply power of individual ports is 30W.
The 8 ports of Power over Ethernet can achieve A I self-healing function (watchdog function) by toggling any dial horse switch in the case of non-stop power, 250m long distance + VLAN isolation mode ，which automatically detects the data communication status in real time. When a port communication fault occurs, the corresponding port restarts automatically to recover the network communication and avoid manual maintenance.The Value lies in help to build the AI intelligent security transmission ecosystem.
Users can easily understand the working status of the device through the power indicator and status indicator of each port, plug-and-play, no configuration required, simple and convenient.
