Brand: Newbridge

Model: ND-APG1621

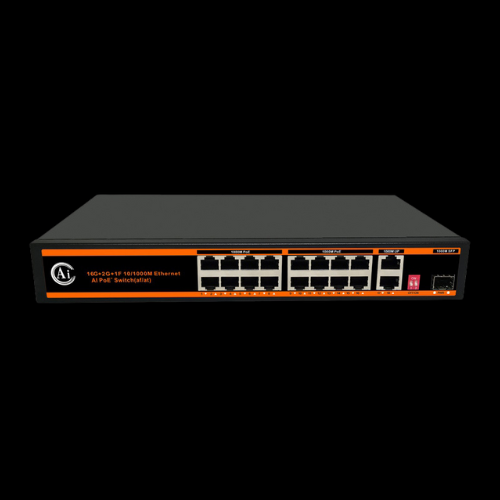

16 Port PoE+2 Gigabit Ethernet Port+1 Gigabit SFP Fiber

FEATURES:

• Support Max Transmission distance up to 250m with PoE Power

• Maximum power of single PoE port: 30 W

• Maximum PoE power: 300W

• 16*10/100/1000Mbps PoE ports, 2*10/100/1000Mbps uplink port ，1*1000Mbps SFP Slot

• Support IEEE802.3af/at

• Support restrain network storm, VLAN function

• Support A I self-healing mode（Watchdog function）

• The toggle horse can be switched at will without power

• All port supported by MDI/MDIX auto flip and self-negotiation

• Built-in power supply

• Adopts store-and-forward architecture

• Fanless, natural cooling, small,compact and quiet design, suitable for desktop or wall

• Support lightning protection 4kV

Newbridge®The   16-port   10/100/1000Mbps  AI   PoE  switch   provides  seamless  data  connectivity  for 10/100/1000Mbps Ethernet and PoE power for powered devices such as network surveillance cameras and wireless (AP).

The switch has 16* 10/100/1000Mbps PoE+ ports + 2* 100/1000Mbps uplink ports+ 1 Gigabit SFP ports, where  1-16  100/1000  Mbps  downlink  power  ports  all  support  powering  PoE  network  cameras  via  UTP Category 5 and above unshielded twisted pair cables. 16 10/100/1000 Mbps adaptive RJ45 downlink ports all  support  802.3af/at  standard  PoE  power  supply.       Support  priority  mechanism,  when  the  remaining power is insufficient, the power supply of the high priority port is guaranteed first to avoid overloading the equipment. The  maximum  PoE  output  power  of  the  whole  machine  is  300W,  and  the  maximum  power supply power of individual ports is 30W.

The 16 ports of Power over Ethernet can achieve A I self-healing function (watchdog function) by toggling any dial horse switch in the case of non-stop power, 250m long distance + VLAN isolation mode ，which automatically detects the data communication status in real time. When a port communication fault occurs, the corresponding port     restarts  automatically to  recover the network communication and avoid manual maintenance.The Value lies in help to build the AI intelligent security transmission ecosystem.

Users can easily  understand the working status of the device through the  power  indicator  and  status indicator of each port, plug-and-play, no configuration required, simple and convenient.
